Verifying the Deployment

There is no direct way to view or inspect cached secrets in Delinea Credentials Cache. Verification therefore has three parts: confirm that the service itself is running on your hosting platform, confirm that each integration is actually using the cache, and, if configured, confirm that event-driven refresh updates the cache. For the log-based checks, EnableLogging must be set to true (see Configuring Delinea Credentials Cache).

Verifying the Service

Verifying an IIS Deployment (Windows)

  1. Open IIS Manager.

  2. Confirm that the Default Web Site status is Started.

  3. Select Application Pools, locate the pool used by the Credentials Cache application, and confirm that its Status is Started.

  4. Under Sites > Default Web Site, select the Credentials Cache application (for example DelineaCredCache).

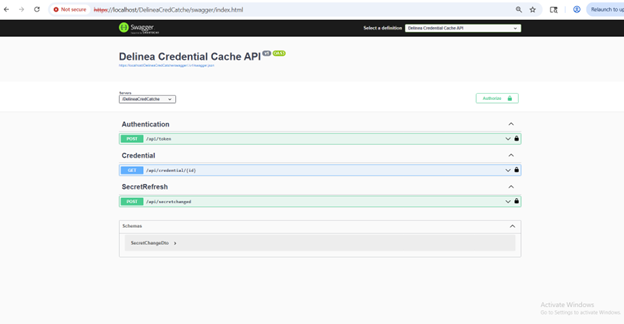

  5. In the Actions pane, select Browse. The Swagger UI should load without errors.

  6. Confirm on the Swagger page that API endpoints are visible and that an Authorize button is present.

If the page does not load, review Event Viewer > Windows Logs > Application for IIS or ASP.NET Core hosting errors. See Troubleshooting.

Verifying an Apache HTTP Server Deployment (Linux)

  1. Check the service status:

    sudo systemctl status credcache.service

    The service should be active (running). To see the application's own console output, run sudo journalctl -u credcache.service -f.

  2. Check that Apache HTTP Server is running:

    Ubuntu: sudo systemctl status apache2

    RHEL: sudo systemctl status httpd

  3. Open the Swagger UI in a browser through the proxy to confirm that the API is accessible, for example:

    http://your-server/swagger/index.html (or https:// if you configured HTTPS)

  4. If the page does not load, check the Apache HTTP Server error log:

    Ubuntu: sudo tail -f /var/log/apache2/error.log

    RHEL: sudo tail -f /var/log/httpd/error_log

Verifying a Docker Deployment

  1. Confirm that the container is running:

    docker ps -a --filter "name=delinea-credential-cache"

    The STATUS column should show Up.

  2. Review the container logs for startup errors:

    docker logs delinea-credential-cache

  3. Open the Swagger UI on the mapped host port, for example http://<hostname>:8083/swagger or https://<hostname>:8443/swagger.

Verifying the API End to End

On any platform, use Swagger UI to call POST /api/token with your vault credentials and confirm a 200 OK response that contains a token, then authorize with that token and call GET /api/credential/{id} for a secret the account can view. A 200 OK response confirms that the cache can authenticate to the vault and retrieve secrets. See API Reference.

Verifying the Integrations

Verifying WebSphere Application Server

  1. Confirm that the application's data source uses the Delinea JDBC Proxy Driver, as described in Integrating WebSphere Application Server with Delinea Using the JDBC Proxy Driver.

  2. Open the DelineaDriver.properties file and check that useDelineaCache=y is set.

  3. Exercise the application so that it opens a database connection.

  4. Check the WebSphere logs to confirm that the connection is made through Delinea Credentials Cache, and check the Credentials Cache log (the LogPath directory) for the corresponding credential retrieval.

Verifying Tomcat

  1. Run the Delinea JDBC Proxy Driver setup utility for the application and answer y when asked whether to use Delinea Credentials Cache, as described in Integrating Tomcat Server with Delinea Using the JDBC Proxy Driver.

  2. In the Tomcat configuration folder, open the DelineaDriver.properties file and check that useDelineaCache=y is set.

  3. Exercise the application so that it opens a database connection.

  4. Check the Tomcat logs to confirm that the connection is made through Delinea Credentials Cache, and check the Credentials Cache log for the corresponding credential retrieval.

Verifying a ServiceNow MID Server Integration

When a ServiceNow MID Server uses the Delinea credential resolver with Secret Server or the Delinea Platform, credentials can be retrieved through Delinea Credentials Cache.

  1. Confirm that the MID Server is configured with a Delinea credential resolver (for either Secret Server or the Delinea Platform).

  2. Confirm that the resolver is configured to use Delinea Credentials Cache. See Enabling Delinea Credential Cache in the MID Server documentation.

  3. In ServiceNow, run a test credential retrieval or connection test. If the connection succeeds and no direct credential prompt occurs, the MID Server is retrieving credentials through the resolver.

  4. On the MID Server host, review the wrapper.log file (in the MID Server's logs directory) to confirm that the credential was requested through the cache.

  5. If the credential request does not appear in wrapper.log, review the MID Server configuration to ensure that caching is enabled.

Verifying Event-Driven Refresh

After configuring event-driven refresh, change the password of a secret covered by the pipeline policy and confirm the update in two places.

Checking Event Pipeline Activity

  1. Log in to Secret Server or the Delinea Platform.

  2. Navigate to Admin > Settings > Event Pipelines.

  3. Select the Activity tab.

  4. Locate the pipeline execution and verify the following details:

    • Run ID: Unique identifier for the pipeline execution

    • Status: Should display Success

    • Triggered by: Shows which user or event triggered the pipeline

    • Timestamp: Confirms that the execution time matches your password change

If the status shows Success and the timestamp is recent, the Event Pipeline is functioning correctly.

Checking the Credentials Cache Logs

  1. On the host that runs Delinea Credentials Cache, go to the directory configured in LogPath (on Docker, the host directory mounted to /app/logs).

  2. Open the most recent log file.

  3. Look for the following success indicators for the changed Secret ID:

    • "Successfully retrieved the credential for [SecretID]"

    • "Updating cache"

    • "Saving credential cache to file"

These log entries confirm that the Credentials Cache received and processed the secret update from the Event Pipeline.

If no log entries appear after a password change, verify that EnableLogging is set to true. If the pipeline shows Success but no log entry appears, the script may be targeting a different cache instance or URL; see Troubleshooting.
