Creating and Implementing an Ultra VNC Custom Connection Launcher

You are viewing documentation for a version of Secret Server that is no longer supported. Delinea supports Secret Server for one year after release. This version has passed that window and will no longer receive updates. We strongly recommend upgrading to a supported version. Visit the current version of this page for the latest documentation.
For release dates, end-of-support timelines, and upgrade guidance, see the Secret Server Product Lifecycle page.
You can view the latest version of the Secret Server documentation here.

Follow the steps below to create an Ultra Virtual Network Computing (VNC) custom connection launcher using Secret Server on a Windows machine.

Create an Ultra VNC Custom Connection Launcher

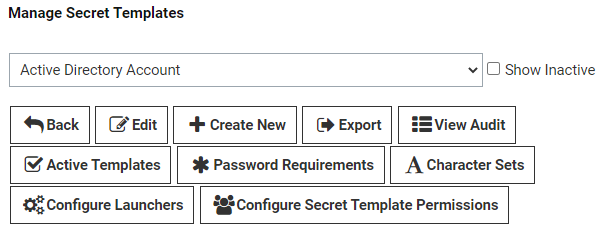

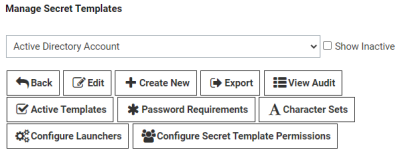

  1. Open Secret Server and click, Admin > Secret Templates > Configure Launchers

    image-vnc-launcher1

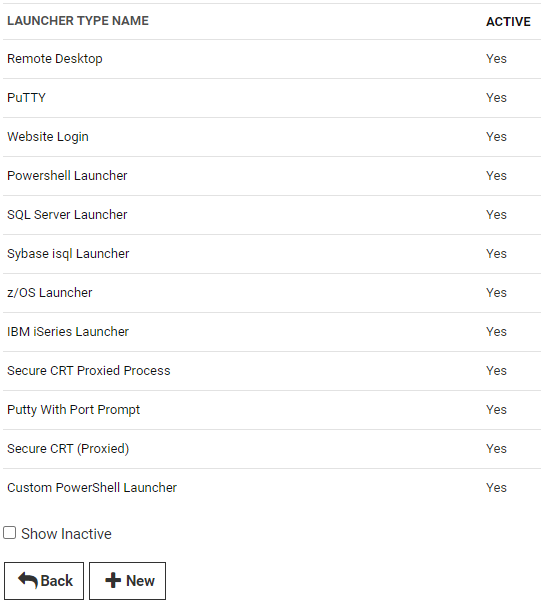

  2. Click the +New button at the bottom of the window.

    image-vnc-launcher2

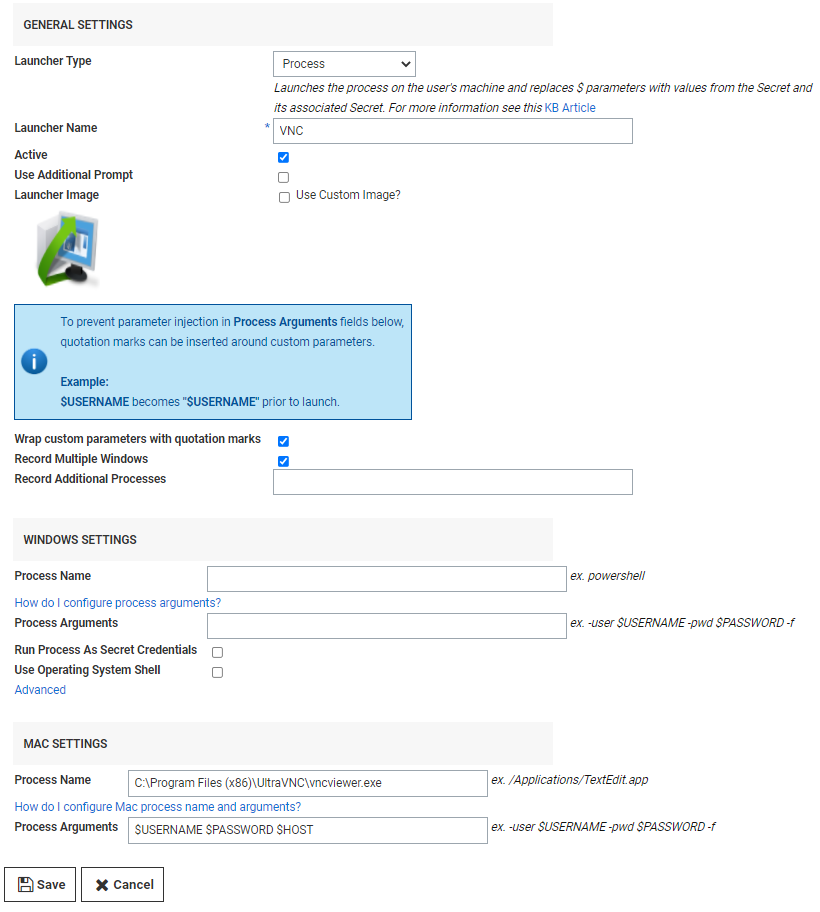

  3. Under General Settings, enter the settings as described below, then click Save.

    Launcher Type: Process

    Process Arguments: $USERNAME $PASSWORD $HOST

    Process Name: C:\Program Files (x86)\UltraVNC\vncviewer.exe

    Parameters: /user $USERNAME /password $PASSWORD -connect $HOST

    You may need to change the Process Arguments if the names of these fields in your Secret Template are something other than "Username" "Password" and "Machine"

    image-vnc-launcher3

Assign the Launcher to a Template

Assign the new launcher to an appropriate existing template. To build a new template specifically for VNC connections, see Creating or Editing Secret Templates)

  1. Open the template and click the "Configure Launcher" button.

    image-config-launcher-button

  2. Click +Add New Launcher

    image-add-new-launcher-button

  3. Select the VNC custom launcher you just created

  4. Map the username and password fields accordingly.

  5. Click Save.
