Secret Server Configuration

Depending on the credential type that you are validating, make sure you are using the appropriate secret template as per the table below:

Credential Type Template Name Template Type Note
Active Directory Account

Windows Account - version 4.6 and below

Active Directory Account -starting with version 5.0

 Built-in

Used for domain authentication.
JDBC JDBC Credential Built-in Used for database connections.
SSH Unix Account (SSH) Built-in Default SSH password-based login template.
SSH PrivateKey SSH Key Built-in May appear separately or within Unix Account.
Windows Windows Account Built-in Available by default in most configurations.
JMS* JMS Credential Custom For Java Messaging Service access.
SNMPv3* SNMPv3 Custom

Requires custom template with SLUGs.
SNMP Community* SNMP Credential Custom Must create custom template manually.
VMware* VMware Credential Custom Credentials used to authenticate and manage VMware's virtualization software running on physical servers
Kubernetes Credentials * Kubernetes Credentials Custom Used to authenticate and manage access to Kubernetes clusters, typically using tokens.
Azure Service Principal Servicenow * Azure Service Principal Servicenow Custom Used to authenticate with Azure services via a Service Principal, often for integrations like ServiceNow automation.

* For Azure Service Principal Servicenow, you must create a custom template with the following fields and SLUG mappings:

Field Slug Type
Tenant ID tenant-id Text
Client ID client-id Text
Secret key secret-key Password
Auth Method auth-method Text

* For JMS and VMware, you must create a custom template with the following fields and SLUG mappings:

Field Slug Type
Username username Text
Password password Password

* For SNMP Community, you must create a custom template with the following fields and SLUG mappings:

Field Slug Type
Username username Text
Password password Password

* For Kubernetes Credentials (sn_itom_pattern_kubernetes), you must create a custom template with the following fields and SLUG mappings:

Field Slug Type
username username Text
password password Password
bearer token bearer-token Text

*For SNMP V3, you must create a custom template with the following fields and SLUG mappings:

Field Slug
Username Username
Authentication protocol authentication-protocol
Authentication Key authentication-key
Privacy protocol privacy-protocol
Privacy key privacy-key

Creating an Application Account in Secret Server

  1. Create a Application Account user in Secret Server.

  2. Create a Role in Secret Server with View Secret and View Launcher Password permissions.

Creating a Secret in Secret Server

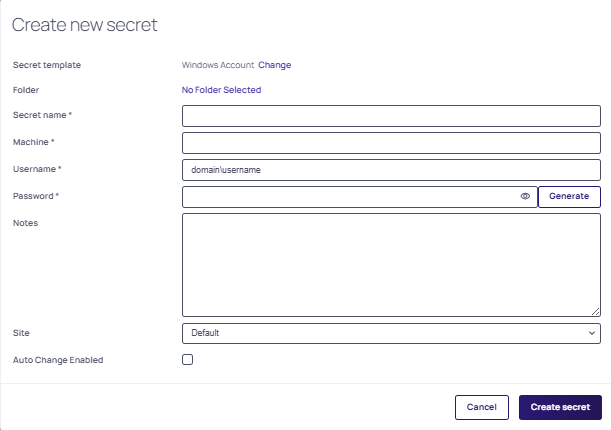

  1. Create a secret in the Delinea Secret Server. Make note of the SecretID which is shown in the URL as this is needed when setting up the credential in ServiceNow.. The following is an example of a Windows Credential.

  2. Add the Service / Application Account user in the Sharing section of the secret.
