Verification

This topic provides steps to verify that the integration of Securosys HSM with Secret Server works.

To verify the integration in Secret Server:

1. Navigate to Settings > All settings.

2. On the All settings page, under Configuration, select HSM.

3. Select Enable HSM and on the Enable HSM page, consider the steps for Securosys HSM setup and select Next.

4. Provide the following information to configure the Securosys HSM and select Next:

   • API Type: Select PKCS11.

   • Library name: Select the PKCS#11 library (.dll) provided by Securosys.

   • Token label:Enter the token label. The token label is the partition name.

   • User pin: Your user pin.

   • Key type: Select AES.

   • Key size: Select 256.

   Below is an example of the PKCS#11 settings in Secret Server:

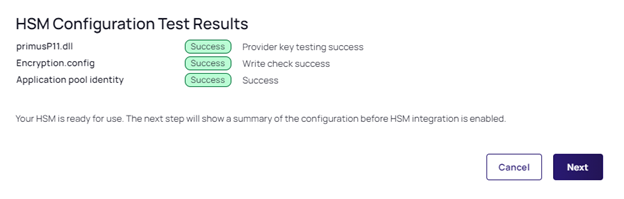

Based on the HSM information you provided, the integration simulates encryption and decryption operations and verifies the results. If the HSM is configured successfully, the following page appears. This verifies the successful setup of the Securosys HSM in Secret Server.
