Managing Domain Users

Configuring Active Directory Sync

Secret Server can integrate with Active Directory by allowing users to use their Active Directory credentials to login to Secret Server. According to Common Criteria compliance, Active Directory relies on LDAPv3 (RFC 2251) protocol, which is not configurable by users.

In order to setup Active Directory in Secret Server, you will need to:

1. Create a Sync Secret

2. Specify the domain to authenticate against

3. Configure TLS with Active Directory

4. Set Synchronization Groups

5. Turn on Active Directory Sync

Secret Server relies on a primary “Sync” secret to connect to the LDAPv3 server in Active Directory. Once connection has been made to Active Directory through this secret, Secret Server needs to know which domain within Active Directory to authenticate against, and within that domain which specific Active Directory Group(s) to synchronize with. The Active Directory Sync in Secret Server targets Secret Server user account credentials from Active Directory. Secret Server will categorize users according to group information from Active Directory, but Secret Server does not create, delete, or alter Active Directory Group Policies.

Create a Sync Secret

Before synchronizing users, you must first create a secret to be used as the Sync Secret. This secret should contain Domain Admin credentials (or an account with appropriate permissions for Read Access to all your organization’s AD objects).

From Secret Server’s dashboard you can create this secret through the Create Secret Widget.

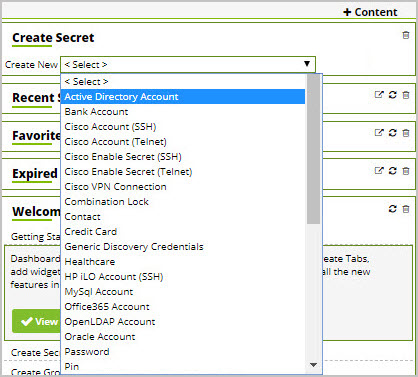

1. Next to “Create New,” select Active Directory Account from the dropdown list.

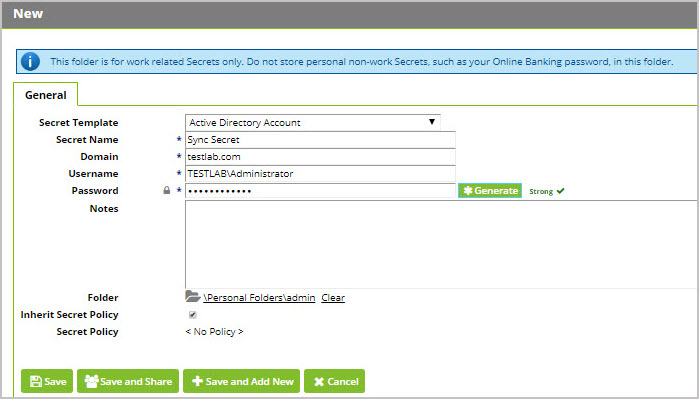

2. Add a Secret Name and provide the Domain Name, Username, and Password for the Sync Secret that will be able to access Active Directory with Admin credentials. Save.



Specify the Domain & Enable Active Directory Integration

Specify which domains Secret Server will be able to authenticate against. Secret Server can synchronize with any number of domains.

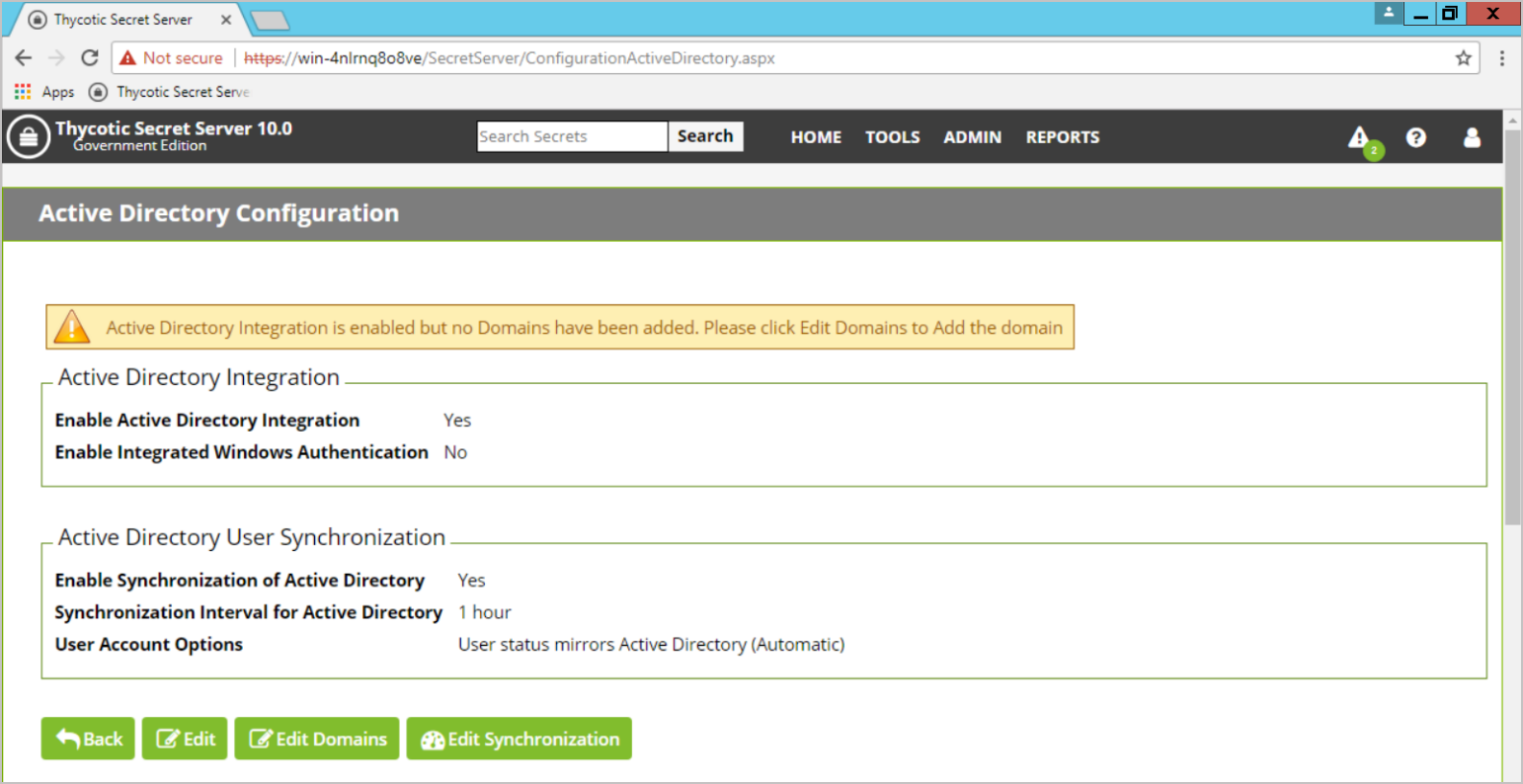

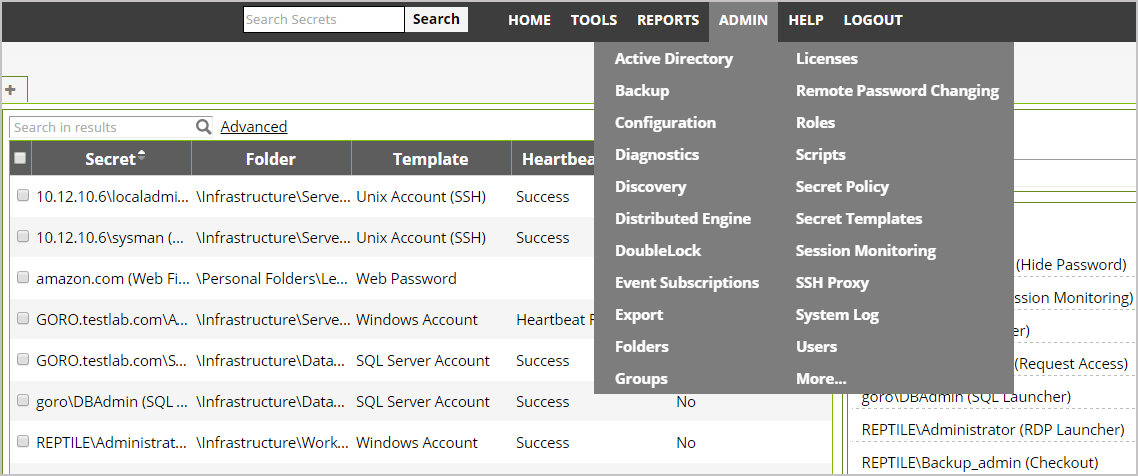

1. Once logged into Secret Server – Click on Admin | Active Directory



2. From the AD Configuration page, click Edit.

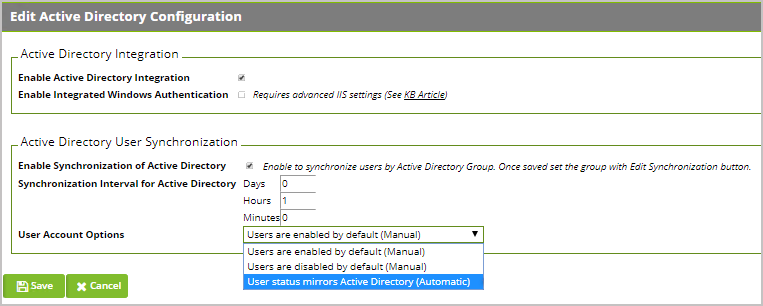

3. Check Enable Active Directory Integration in the Active Directory Integration section

4. Select Enable Synchronization of Active Directory in the Active Directory User Synchronization section

5. Wait a few seconds for the screen to update

6. Next to User Account Options select User status mirrors Active Directory (Automatic) from the drop-down. This allows Secret Server to mirror any changes made to Active Directory automatically.

7. Click Save



8. Click Edit Domains

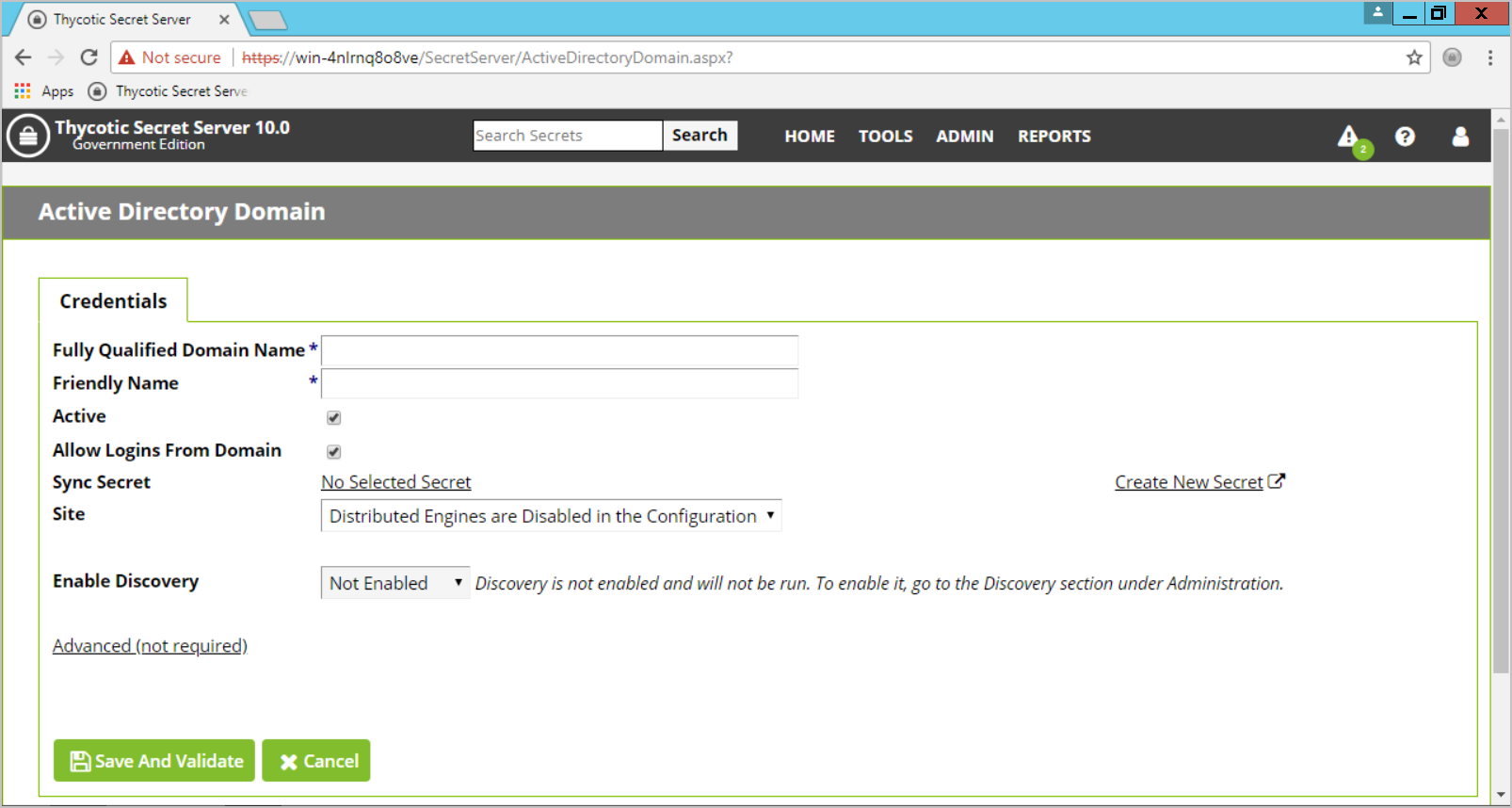

9. Click Create New

10. Provide the Fully Qualified Domain Name

11. Provide a Friendly Name

12. Ensure that the box next to Active is checked.

13. Check the box next to Allow Logins From Domain.

14. Select your Sync Secret by clicking No Selected Secret

15. Search for the secret created earlier.

16. Click Save and Validate.



The Active Directory Sync Secret will be used to synchronize users and groups, it will require permission to search and view the attributes of the users and groups.  If you plan on using Discovery (NOTE: Discovery is not under Common Criteria’s scope), the account will also need permissions to scan computers on the network for accounts.

Configuring TLS with Active Directory

To ensure that TLS is configured with Active Directory:

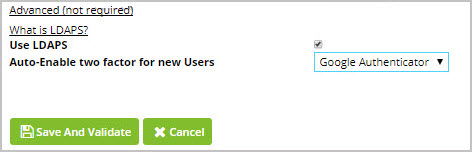

• From the Admin > Active Directory > Edit Domains > Create Newpage (continuing from previous section), after entering the requestedinformation, click Advanced (not required) and check the Use LDAPS box to enable. Click Save And Validate to save this domain.



*If the TLS connection to Active Directory fails, the user will be notified and the failure will be logged. Secret Server does not automatically retry to connect to TLS but will retry the next time a user attempts to connect to AD.

More information for setting up Active Domain with LDAPS can be found at

https://blogs.msdn.microsoft.com/microsoftrservertigerteam/2017/04/10/step-by-step-guide-to-setup-ldaps-on-windows-server/"We're no longer updating this content regularly."

Setup Synchronization Groups

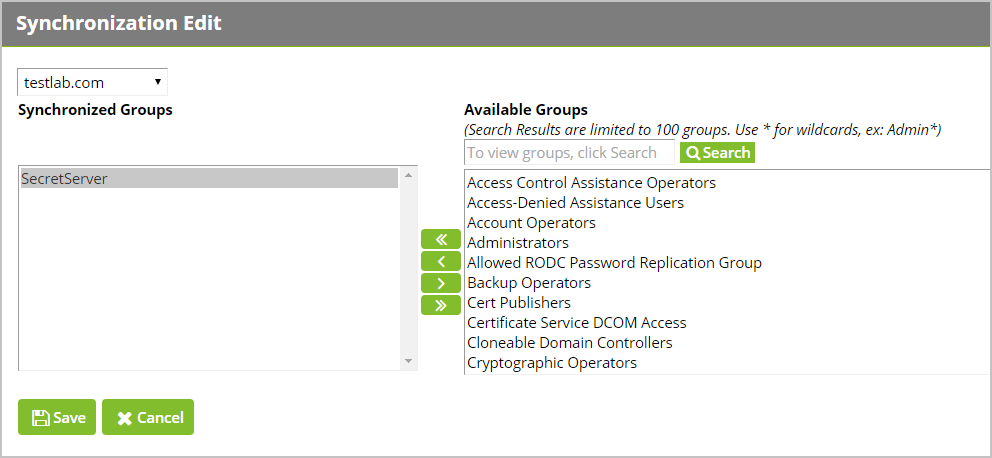

Once the domain has been added, click the “Edit Synchronization” button on the Active Directory Configuration page.

The Available Groups represent all accessible groups on the specified Active Directory domain. The user membership can be previewed with the Group Preview control.

• Select the desired group from the Available Groups that contains the Active

  Directory accounts for users you would like to create in Secret Server and

  move it into the Synchronized Groups area, click Save. This allows

  you to tailor specific Active Directory users to have domain accounts in

  Secret Server.

Managing Domain Credentials

Updating Domain Credentials

Updating Active Directory (AD) Credentials and passwords happens directly through Active Directory and syncs with Secret Server according to a schedule. You can synchronize your Active Directory accounts at any time by navigating to Admin | Active Directory and clicking the Synchronize Now button. You cannot add or edit Active Directory credentials through Secret Server directly.

When a user logs into Secret Server using Active Directory credentials or uses an AD account to launch a session, the credentials are sent to the Domain Controller in real time for authentication verification. Therefore, if an AD user account has been updated or removed, changes will be reflected immediately in Secret Server.

Failed Domain Authentication

If the connection between Secret Server and the AD domain breaks, domain users Secret Server will fail to authenticate into Secret Server until the connection is re-established. Secret Server will log all failed authentication attempts by users.

To find these audit logs, navigate to Admin > Users > select a user > View Audit or refer to section 12.0 Local Auditing.
