Privilege Manager Cloud Architecture
The information provided is a Privilege Manager Cloud agent connectivity example.
Diagram

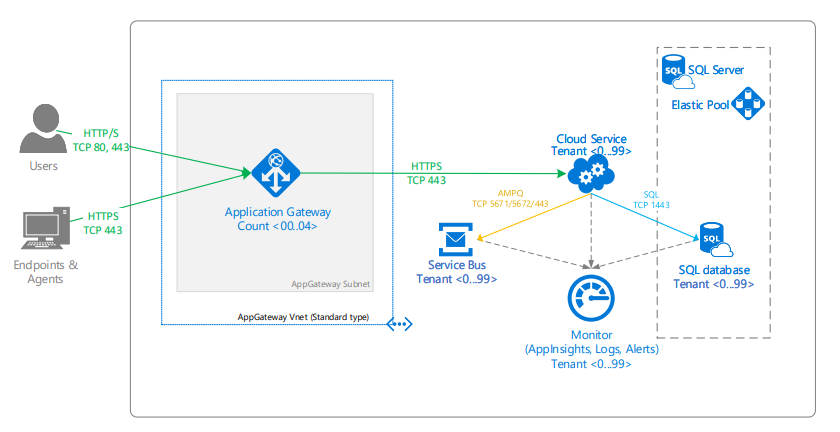

Figure: Privilege Manager Cloud Architecture
Web Application Firewall (WAF)
IP Address allowlisting is not necessary unless outbound firewall rules are in place. Generally, the public IP the hostname resolves to is based on geographical location of the request source.
US
- 13.92.238.189
- 20.62.140.151
- 20.72.149.142
- 20.81.14.178
- 20.81.21.130
- 20.81.65.234
- 20.81.68.147
- 20.81.123.91
- 20.84.34.132
- 20.85.201.237
- 20.88.176.22
- 20.119.38.215
- 20.163.166.200
- 20.172.242.207
- 20.228.249.169
- 20.231.58.68
- 20.232.195.171
- 23.101.142.103
- 40.76.159.46
- 40.88.250.211
- 52.136.127.49
- 52.146.66.102
- 52.146.66.244
- 52.149.238.230
- 52.149.205.98
- 52.154.69.186
- 52.186.102.0
- 52.191.103.234
- 52.191.235.73
- 52.224.76.213
- 52.224.254.56
- 52.255.201.247
- 54.154.73.179
- 172.174.100.176
EU
- 20.56.240.207
- 20.61.137.98
- 20.76.59.64
- 20.86.109.175
- 20.93.154.191
- 52.157.86.0
- 104.45.72.251
AU
- 20.37.5.19
- 20.39.64.207
Canada
- 20.63.51.11
- 20.116.80.217
SEA
- 20.43.149.152
Requirements for the Architecture
The agents on endpoints may be installed anywhere around the world. The diagram can be adjusted to include specific locations relevant to our customers.
Agents my be installed on Windows, macOS, or Unix/Linux endpoints.
- Windows 7 or newer
- Windows Server 2012+
- MacOS 10.11 (El Capitan or newer)
- Unix/Linux: CentOS 7+, RHEL 7+, Oracle Linux 7+, Ubuntu 18.04+
Also refer to:
Privilege Manager Single-Tenant Cloud Customer Example Architecture
The information provided is a Privilege Manager Cloud reference example.
Diagram
Figure: Privilege Manager Cloud Customer Architecture
