Hyper-Scalable Privileged Access Service: High Availability Single Site

If you are a current customer with support hours for Delinea Professional Services, you can discuss any of these diagrams in detail with one of our Professional Services support architects.

Definitions

  • Recommended for large production environments
  • Application components split across independent servers, additional nodes to provide HA added for most layers
  • Connectors installed in one or more locations
  • Flows depict connectivity for web based connection between user and destination systems and using native SSH or RDP clients to connect through connector to destination systems (proxied use cases)

System Requirements

  • 8 Core, 8 GB RAM for the Application, Web, Logging, and Relay layers
  • 4 Core, 16 GB RAM for the Connector
  • 8 Core, 32 GB RAM for Postgres
  • 8 Core, 32 GB RAM for Redis Cache
  • Management Server does not need to be a net-new system and can have minimal specs

Diagram

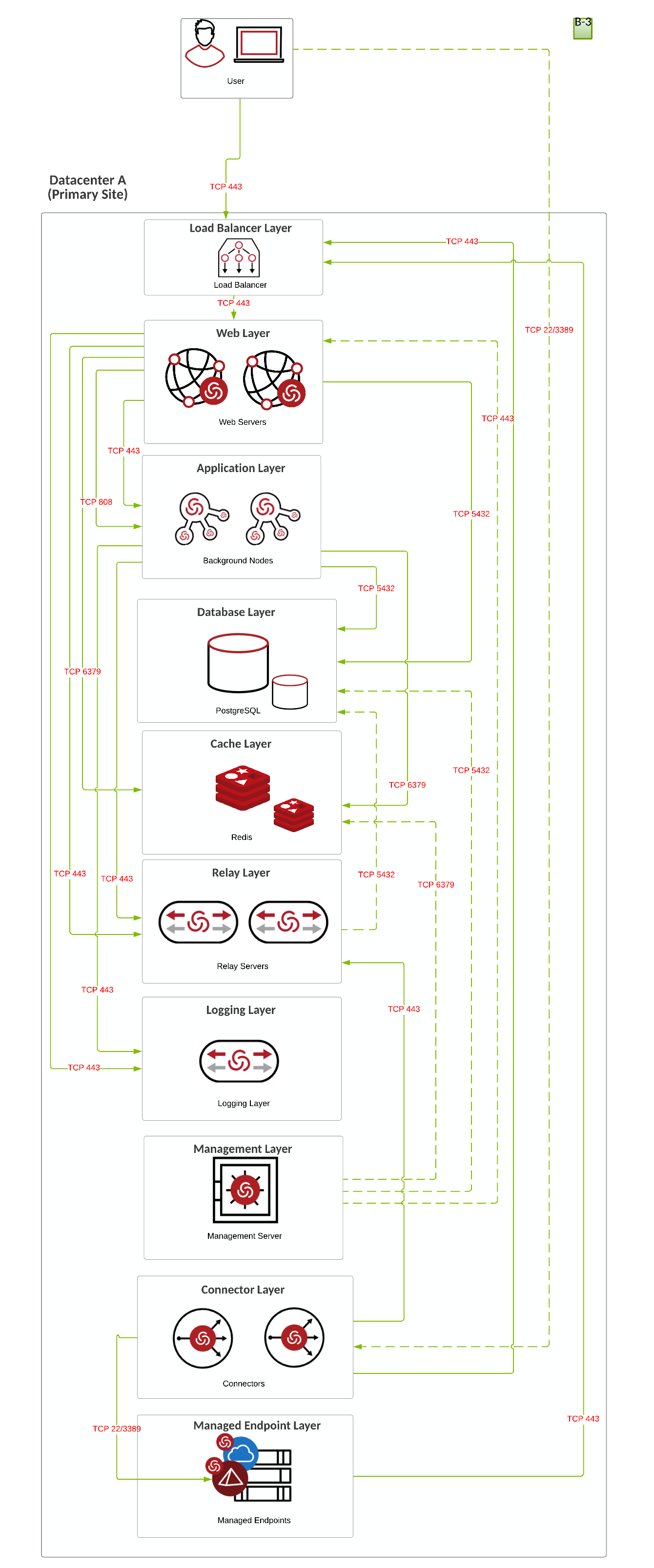

Figure: Hyper-scalable Privileged Access Service: High availability single site

alt

Figure: Diagram legend

alt
